Let's say I want to make a 3D printer main board

LMR51450SDRRR - Voltage regulator [1]
TPS2116DRLR - Power source selector [2]
TXS0108ERGYR - Logic voltage translator [3]
LM61495RPHR - Voltage regulator [4]
LP5912-3.3DRVR - Voltage regulator [5]

Those are all some kind of voltage regulators I found in SmartPrintCoreH7x [6] open source main board. And those are not all. It seems to me that this board is a bit complicated. They managed to populate all the damn pins on STM32H7, and it has a lot of them. I'm wondering is it possible to make it less complicated, with fewer features but still functional. It needs to be functional enough so I can power my Ender 3 v2 with it, and operate it.

If I cut out all the parts that are not needed in my case. Is it possible to somehow incorporate a small LCD in the main board? I know how it can be done, however I don't know is it easy enough to program that screen in the firmware.

Another thing is that H7 chip is massive. It will look silly when the majority of chips pins will be empty. So i might use STM32 H5. It is smaller, however I think no one created a board with that one. There must be a reason.

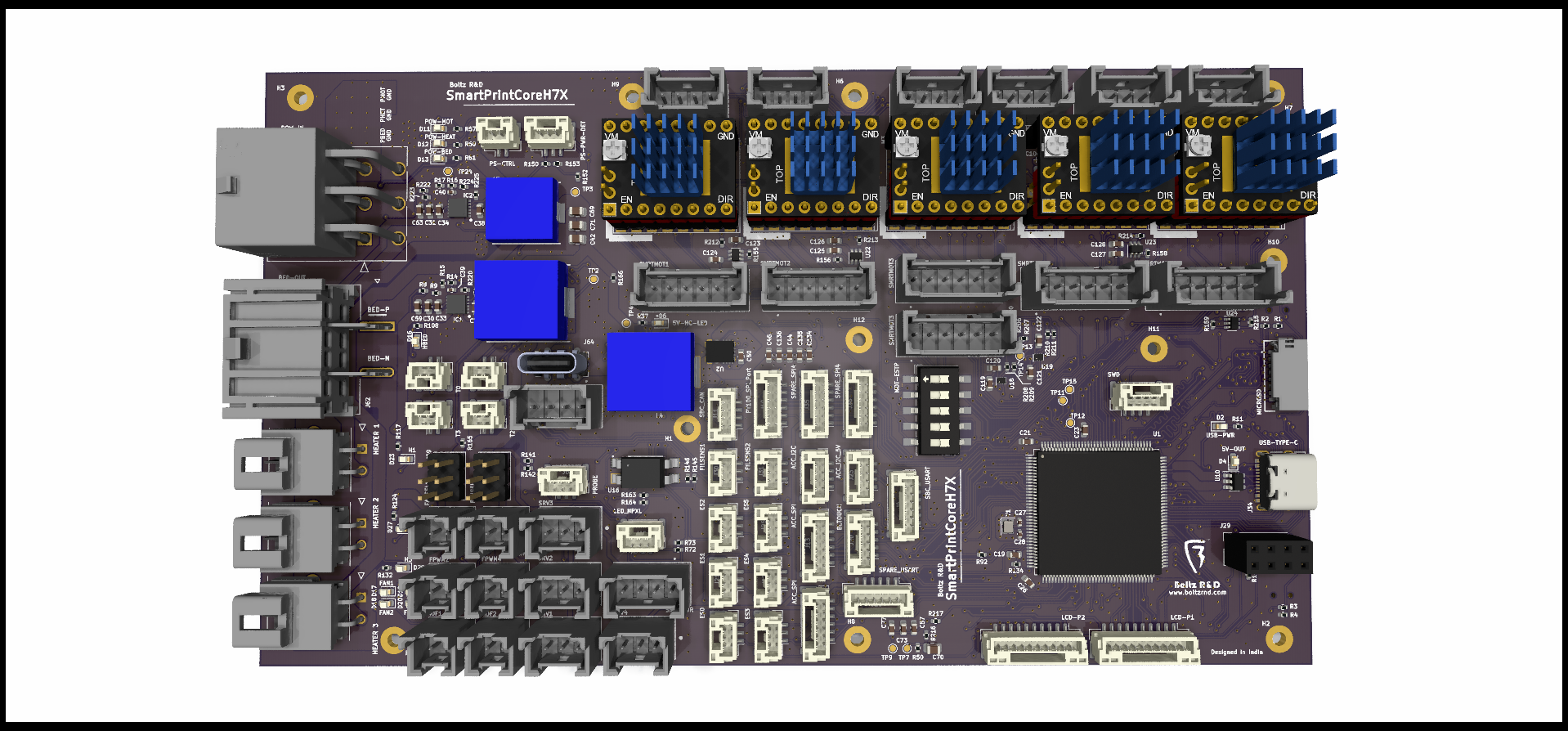

Watching in this damn board there are so many connectors. What I need for an Ender 3V2 to work is 4 motor connectors, 3 limit switch connectors, power supply connector, 3 to 4 fan connectors, 2 heater connectors. That's 14 connectors all in all. On this picture is 45+. Damn.

[1] https://www.ti.com/lit/ds/symlink/lmr51450.pdf?ts=1786181709141&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLMR51450

[2] https://www.ti.com/lit/ds/symlink/tps2116.pdf?ts=1786267085818&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FTPS2116%252Fpart-details%252FTPS2116DRLR

[3] https://www.ti.com/lit/ds/symlink/txs0108e.pdf?ts=1786188794904&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FTXS0108E%253Futm_source%253Dgoogle%2526utm_medium%253Dcpc%2526utm_campaign%253Dasc-tech-inno-dynpf_logic-cpc-pf-google-eu_en_int%2526utm_content%253Dprodfolddynamic%2526gclsrc%253Daw.ds%2526gad_source%253D1%2526gad_campaignid%253D23906084824%2526gbraid%253D0AAAAAC068F1P8iSdwG4ehAdqzZam5a1Uw%2526gclid%253DEAIaIQobChMIzInJ9vWQlgMVHBoGAB2LNx_uEAAYAiAAEgI1vfD_BwE

[4] https://www.ti.com/lit/ds/symlink/lm61495.pdf?ts=1786192190473

[5] https://www.ti.com/lit/ds/symlink/lp5912.pdf?ts=1786217375325&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLP5912

[6] https://github.com/BoltzRnD/SmartPrintCoreH7x

STM32H723ZGTx not even funny

There it is in KiCad. I can't understand why it has so much VDD pins. I guess i can just copy the capacitors on those from someone else. 12 * 100nF caps. Guess one for each damn pin. Just will take too much space on the board. What follows

STM32H7 pin connections for 3D printer main board

In order for Marlin firmware to work properly on my imaginary main board I'm building. Turns out there is a file in a Marlin GitHub repository that has pre set pins for certain popular main boards that use H7 as their brain. One of those is a BTT

What does the simplest 3D printer main board need?

Well the task of making a main board is incredibly complicated, that's why it needs to be as simplified as much as possible. The schematic of Ender 3 motherboard is a good reference I feel. Because they wanted to cut costs everywhere they could. That includes a main

Turns out stepper motors are a bit more complicated

Found this nice short manual about stepper motors [1] by Oriental motor [2], which is a US based company that manufactures stepper motors. Dude, I'm not cut out of this. I'm able to understand it a little, but then it starts to build hard concepts on
